Ruck axial fan / EM 125L EC 01 / RV-145680
Plastic fan
196,35 €
Includes 19% MwSt.
plus shipping
Delivery Time: 3-4 weeks
Additional costs (e.g. for customs or taxes) may occur when shipping to non-EU countries.10 in stock
Description
Ruck Etamaster diagonal fan made of plastic
Additional information
| Weight | 1 kg |
|---|---|
| Matchcode | EM 125L EC 01 |
| Product group | Diagonal fan |
| Wing diameter [cm] | 12, 5 |
| Rated frequency fN [Hz] | 50 |
| Input power P1 [kW] | 0, 045 |
| Rated current IN [A] | 0, 41 |
| Rated speed nN [min-1] | 3810 |
| Max. permissible pumped liquid temperature [°C] | 40 |
| Sound pressure level LpA or LwA [dB(A)] | 57-71 |
| Protection class | IPX2 |
| Sash version | Plastic |
| Wall ring plate | Plastic housing |
| Conformity | ErP 2015 |

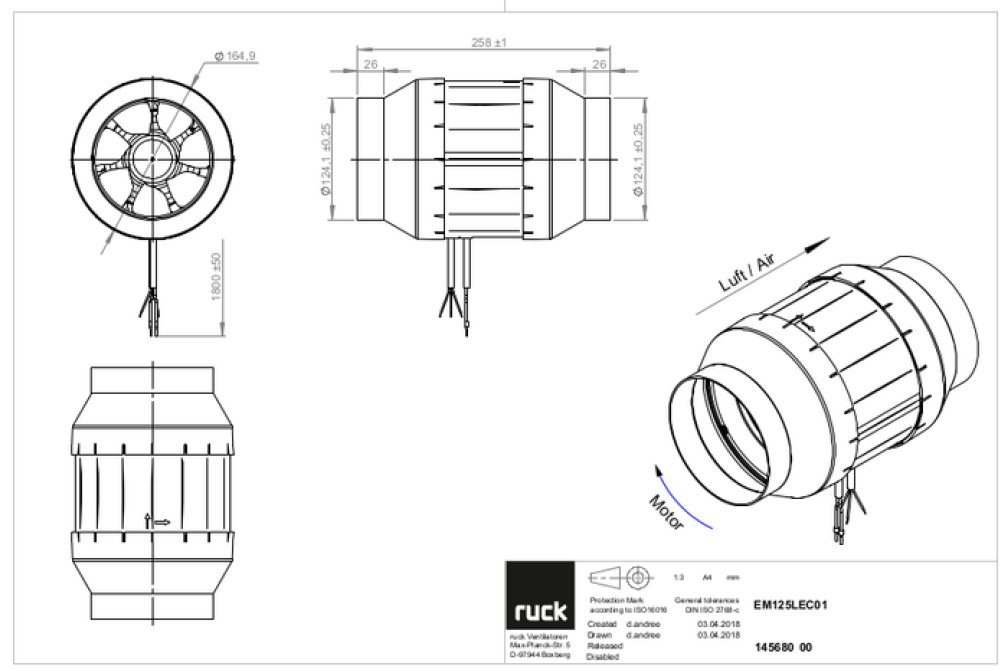

| Design | Pipe connection diameter DN125 |

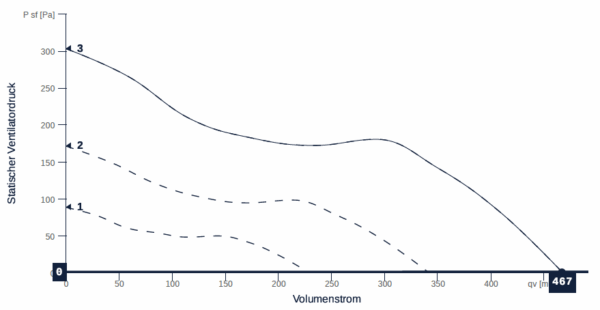

| Volume flow at 0 Pa [m³/h] | 460 |
| Max. pressure psf [Pa] | 181 |
| Volume flow at max. pressure [m³/h] | 287 |
| Performance data | Overall efficiency 64% |
