Ruck axial fan / EM 250 E2M 01 / RV-127317
Plastic fan
270,13 €
Includes 19% MwSt.
plus shipping
Delivery Time: 3-4 weeks
Additional costs (e.g. for customs or taxes) may occur when shipping to non-EU countries.10 in stock
Description
Ruck Etamaster diagonal fan made of plastic
Additional information
| Weight | 5 kg |
|---|---|
| Matchcode | EM 250 E2M 01 |
| Product group | Diagonalventilator |
| Bezeichnung | Etamaster |
| Blade diameter [cm] | 25 |
| Motor technology | AC 1~230V |
| Rated frequency fN [Hz] | 50 |
| Input power P1 [kW] | 0, 170 |
| Rated current IN [A] | 0, 81 |
| Rated speed nN [min-1] | 2880 |
| Min. zulässige Fördermitteltemperatur [°C] | -25 |
| Maximum permissible flow conveyed goods [°C] | 50 |
| Sound pressure level LpA or LwA [dB(A)] | 52-71 |
| Protection class | IPX4 |
| Blade design | Kunststoff |
| Wall ring plate | Kunststoffgehäuse |
| Conformity | ErP 2015 |

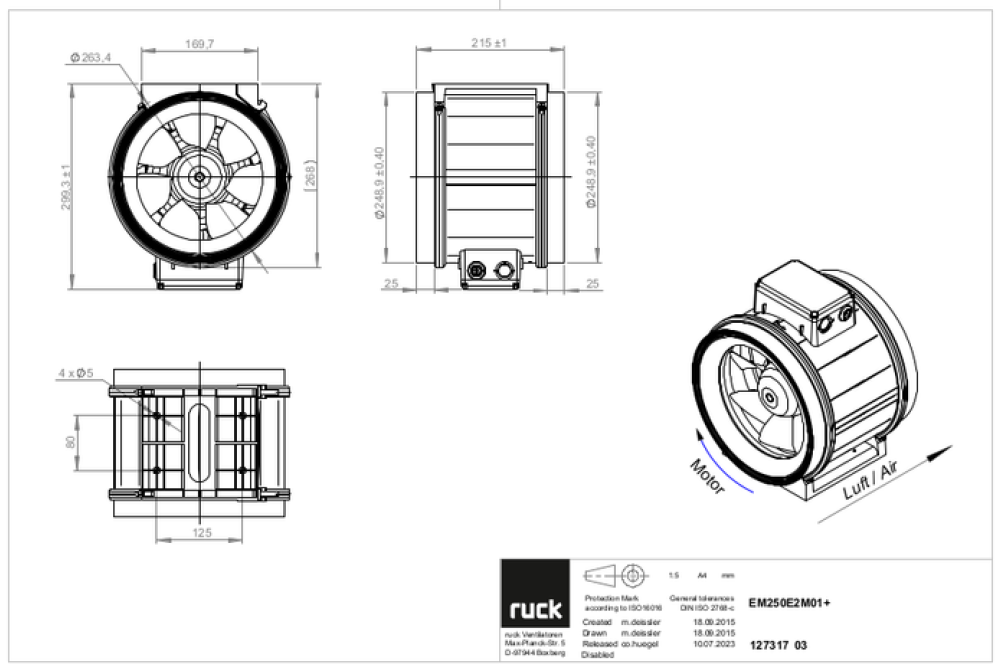

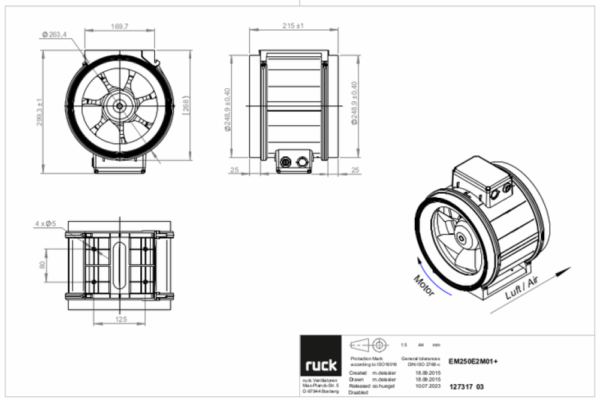

| Design | Pipe connection diameter DN250 |

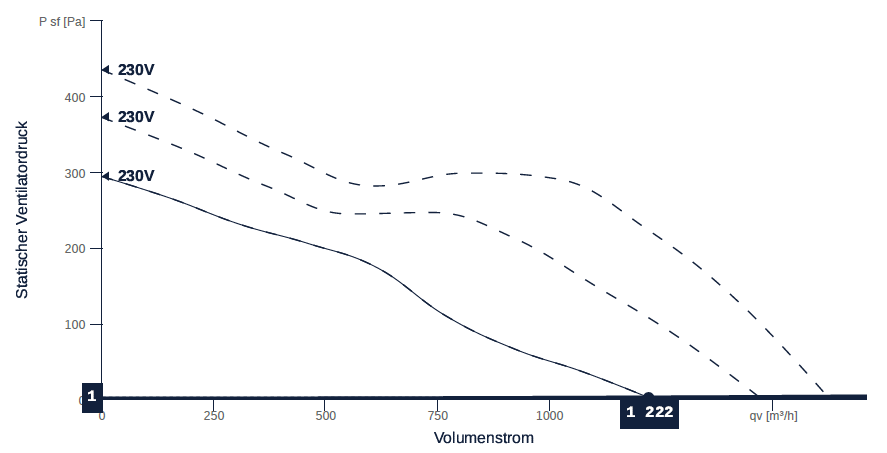

| Volume flow at 0 Pa [m³/h] | 1625 |
| Max. pressure psf [Pa] | 278 |
| Volume flow at max. pressure [m³/h] | 1066 |
| Leistungsdaten | Gesamteffizienz 64, 6% |
