Ruck axial fan / EM 315 EC 01 / RV-130708
Plastic fan
949,62 €
Includes 19% MwSt.
plus shipping
Delivery Time: 3-4 weeks
Additional costs (e.g. for customs or taxes) may occur when shipping to non-EU countries.10 in stock
Description
Ruck Etamaster diagonal fan made of plastic
Additional information
| Weight | 6 kg |
|---|---|
| Matchcode | EM 315 EC 01 |
| Product group | Diagonal fan |
| Designation | Etamaster |
| Wing diameter [cm] | 31, 5 |
| Motor technology | EC 1~230V |
| Rated frequency fN [Hz] | 50 |
| Input power P1 [kW] | 0, 282 |
| Rated current IN [A] | 1, 96 |
| Rated speed nN [min-1] | 2800 |
| Min. permissible pumped liquid temperature [°C] | -30 |
| Max. permissible pumped liquid temperature [°C] | 45 |
| Sound pressure level LpA or LwA [dB(A)] | 50-55 |
| Protection class | IPX4 |
| Sash version | Plastic |
| Wall ring plate | Plastic housing |
| Conformity | ErP 2015 |

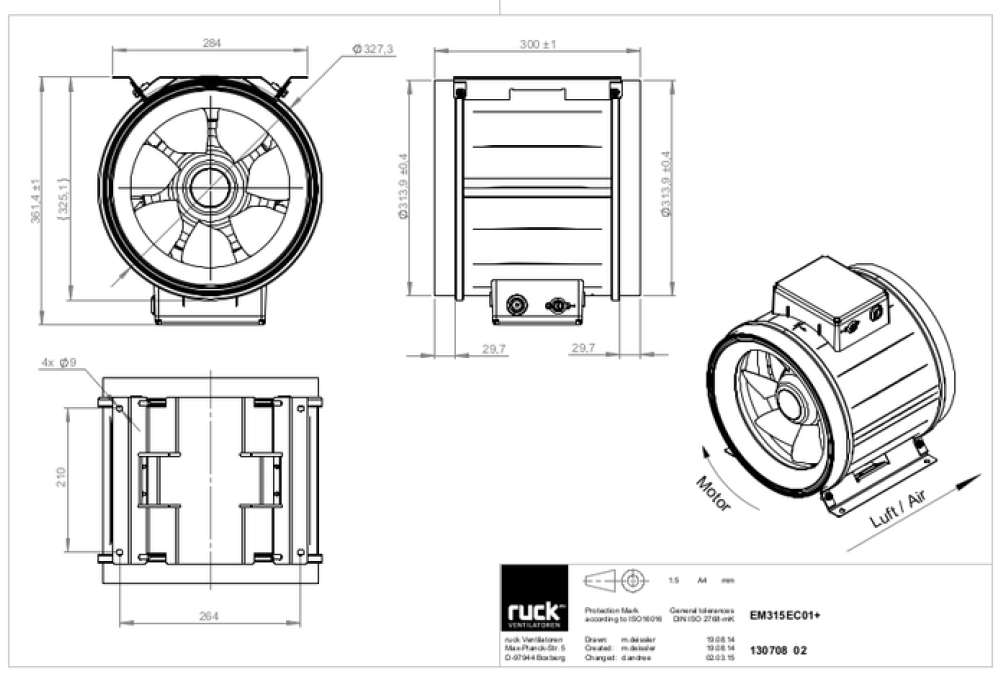

| Design | Pipe connection diameter DN315 |

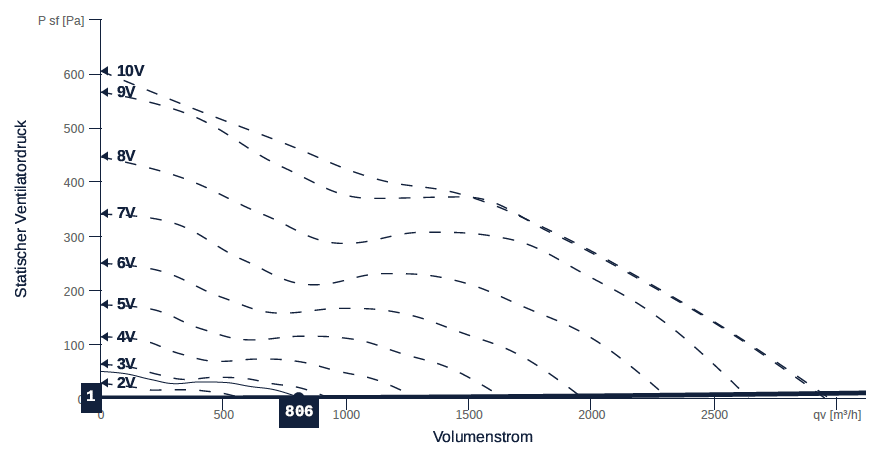

| Volume flow at 0 Pa [m³/h] | 2960 |
| Max. pressure psf [Pa] | 341 |
| Volume flow at max. pressure [m³/h] | 1688 |
| Performance data | Overall efficiency 75, 7% |
