ZIEHL-ABEGG Axial fan / FC035-4ET.2C.A7 / ZV-130769

Name: ZIEHL-ABEGG Axial fan / FC035-4ET.2C.A7 / ZV-130769
SKU: ZV-130769
Availability: InStock

ß – Agriculture

311,78 €

Includes 19% MwSt.

Delivery Time: approx. 5 working days

Additional costs (e.g. for customs or taxes) may occur when shipping to non-EU countries.

2 in stock

SKU: ZV-130769

Additional information

Weight	5 kg
Matchcode	FC035-4ET.2C.A7
Product group	Axial fan
Wing diameter [cm]	35
Rated frequency fN [Hz]	50
Input power P1 [kW]	0, 160
Rated current IN [A]	0, 75
Rated speed nN [min-1]	1370
Min. permissible pumped liquid temperature [°C]	-25
Max. permissible pumped liquid temperature [°C]	70
Sound pressure level LpA or LwA [dB(A)]	69
Protection class	IP54
Motor protection	Thermostat switch
Sash version	Aluminum, 2-layer lacquering, black
Rotor	Aluminum, 2-layer lacquering, black
Wall ring plate	Sheet steel, black
Conformity	ErP 2015

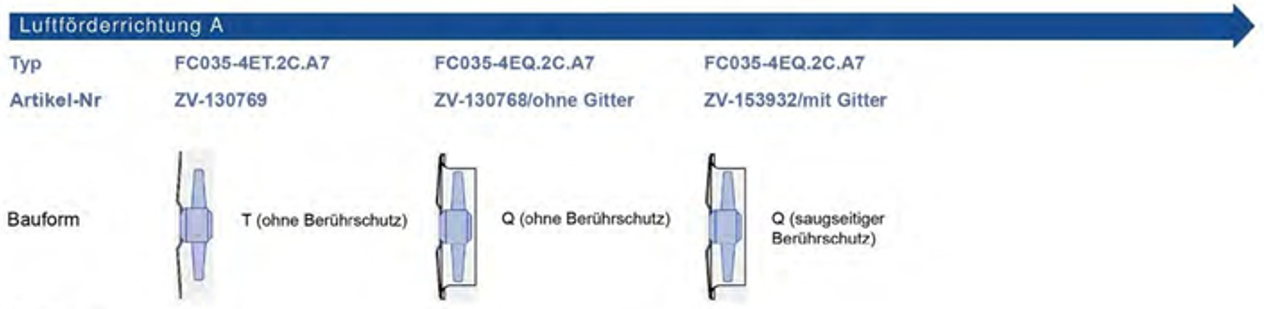

Design	T (without contact protection)

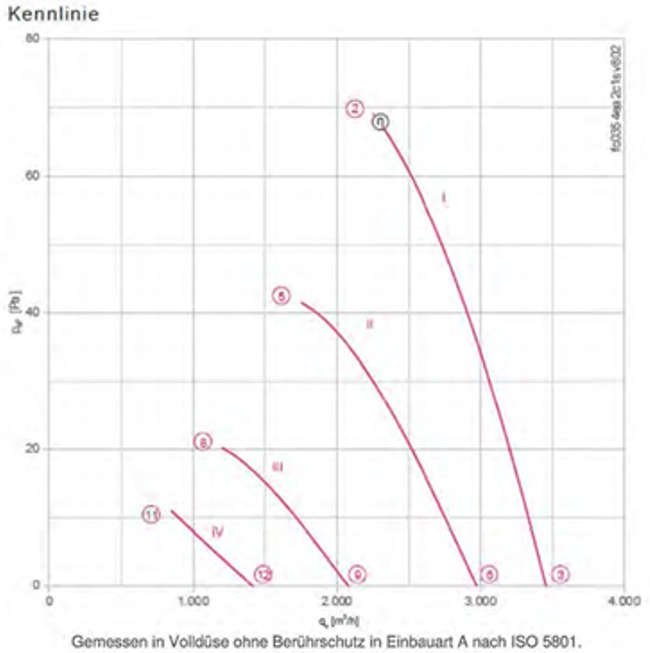

Volume flow at 0 Pa [m³/h]	3400
Max. pressure psf [Pa]	75
Volume flow at max. pressure [m³/h]	2300
