ZIEHL-ABEGG axial fan / FC040-4DD.4C.A7 / ZV-134017 / without grille
ß – Agriculture
348,67 €
Includes 19% MwSt.
plus shipping
Delivery Time: approx. 5 working days
Additional costs (e.g. for customs or taxes) may occur when shipping to non-EU countries.2 in stock
Additional information
| Weight | 8 kg |
|---|---|
| Matchcode | FC040-4DD.4C.A7 |
| Product group | Axial fan |
| Wing diameter [cm] | 40 |
| Rated frequency fN [Hz] | 50 |
| Input power P1 [kW] | 0, 260 |
| Rated current IN [A] | 0, 7 |
| Rated speed nN [min-1] | 1410 |
| Max. permissible pumped liquid temperature [°C] | 40 |
| Sound pressure level LpA or LwA [dB(A)] | 79 |
| Protection class | IP54 |
| Motor protection | Thermostat switch |
| Sash version | Aluminum, 1-layer lacquering, black |
| Rotor | Aluminum, 1-layer lacquering, black |
| Wall ring plate | Plastic |
| Conformity | ErP 2015 |

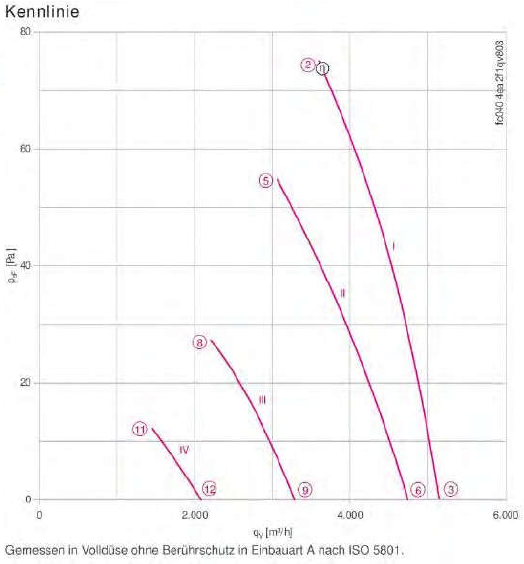

| Volume flow at 0 Pa [m³/h] | 5200 |
| Max. pressure psf [Pa] | 75 |
| Volume flow at max. pressure [m³/h] | 3600 |
