ZIEHL-ABEGG Axial fan / FC040-4EQ.4C.A7_OKß / ZV-141070

Name: ZIEHL-ABEGG Axial fan / FC040-4EQ.4C.A7_OKß / ZV-141070
SKU: ZV-141070
Availability: InStock

ß – Agriculture

387,94 €

Includes 19% MwSt.

Delivery Time: approx. 5 working days

Additional costs (e.g. for customs or taxes) may occur when shipping to non-EU countries.

3 in stock

SKU: ZV-141070

Additional information

Weight	10 kg
Matchcode	FC040-4EQ.4C.A7_OKß
Product group	Axial fan
Wing diameter [cm]	40
Rated frequency fN [Hz]	50
Input power P1 [kW]	0, 270
Rated current IN [A]	1, 3
Rated speed nN [min-1]	1400
Min. permissible pumped liquid temperature [°C]	-25
Max. permissible pumped liquid temperature [°C]	40
Protection class	IP54
Motor protection	Thermostat switch
Sash version	Aluminum, 1-layer lacquering, jet black
Rotor	Aluminum, 1-layer lacquering, jet black
Conformity	ErP 2015, CE

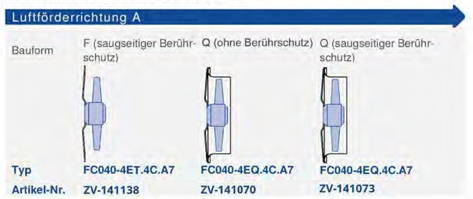

Design	Q (without contact protection)

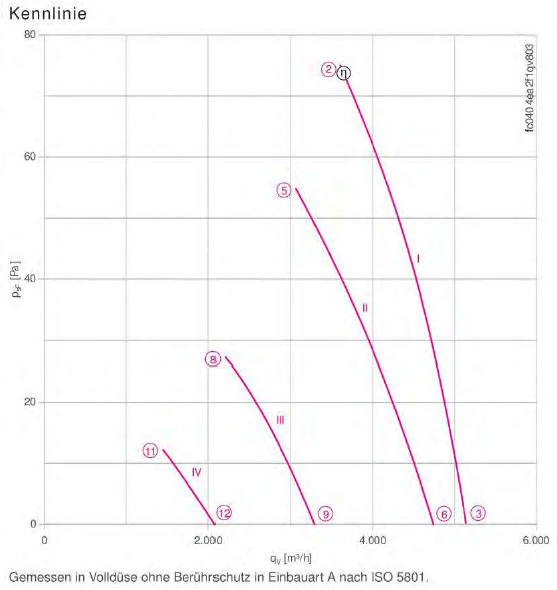

Volume flow at 0 Pa [m³/h]	5200
Max. pressure psf [Pa]	75
Volume flow at max. pressure [m³/h]	3600
