ZIEHL-ABEGG Axial fan / FC045-4EQ.4C.A7 / ZV-125166

Name: ZIEHL-ABEGG Axial fan / FC045-4EQ.4C.A7 / ZV-125166
SKU: ZV-125166
Availability: InStock

Standard

327,25 €

Includes 19% MwSt.

Delivery Time: approx. 5 working days

Additional costs (e.g. for customs or taxes) may occur when shipping to non-EU countries.

3 in stock

SKU: ZV-125166

Additional information

Weight	11 kg
Matchcode	FC045-4EQ.4C.A7
Product group	Axial fan
Wing diameter [cm]	40
Rated frequency fN [Hz]	50
Input power P1 [kW]	0, 360
Rated current IN [A]	1, 6
Rated speed nN [min-1]	1370
Max. permissible pumped liquid temperature [°C]	60
Sound pressure level LpA or LwA [dB(A)]	78
Protection class	IP54
Motor protection	Thermostat switch
Sash version	Aluminum, 1-layer lacquering, black
Rotor	Aluminum, 1-layer lacquering, black
Wall ring plate	Sheet metal
Conformity	ErP 2015
Design	Q

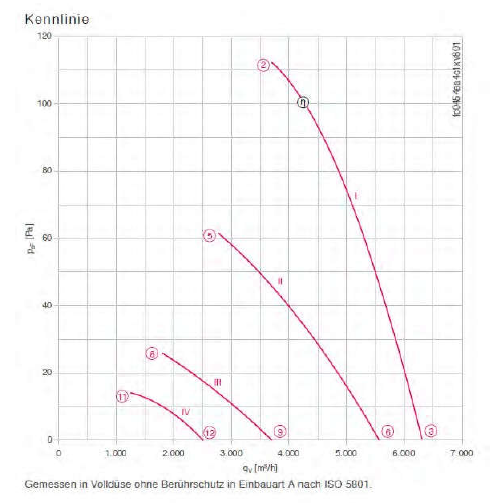

Volume flow at 0 Pa [m³/h]	6300
Max. pressure psf [Pa]	112
Volume flow at max. pressure [m³/h]	3700
