ZIEHL-ABEGG Axial fan / FF056-6D_.4I.A5R2 / ZV-171007
ß – Agriculture
525,98 €
Includes 19% MwSt.
plus shipping
Delivery Time: approx. 5 working days
Additional costs (e.g. for customs or taxes) may occur when shipping to non-EU countries.1 in stock
Additional information
Weight | 11 kg |
---|---|
Matchcode | FF056-6D_.4I.A5R2 |
Product group | Axial fan |
Wing diameter [cm] | 56 |
Rated frequency fN [Hz] | 50 (60 Hz data available) |

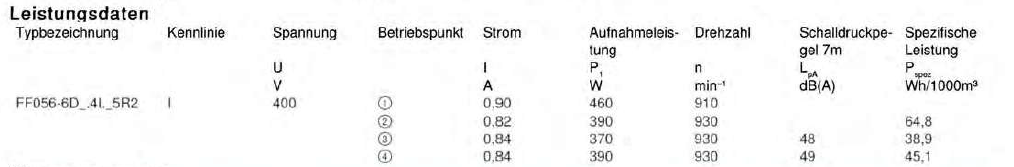

Input power P1 [kW] | 0, 390 |
Rated current IN [A] | 1, 50/0, 86 |
Rated speed nN [min-1] | 930 |
Min. permissible pumped liquid temperature [°C] | -40 |
Max. permissible pumped liquid temperature [°C] | 70 |
Sound pressure level LpA or LwA [dB(A)] | 48/49 |
Protection class | IP54 |
Motor protection | Thermostat switch |
Sash version | Aluminum, 1-layer lacquering, jet black |
Rotor | Aluminum, 1-layer lacquering, jet black |
Conformity | ErP 2015, CE |

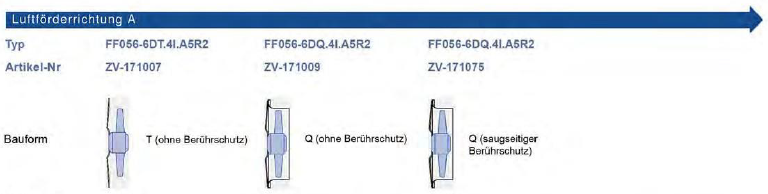

Design | T (without contact protection) |

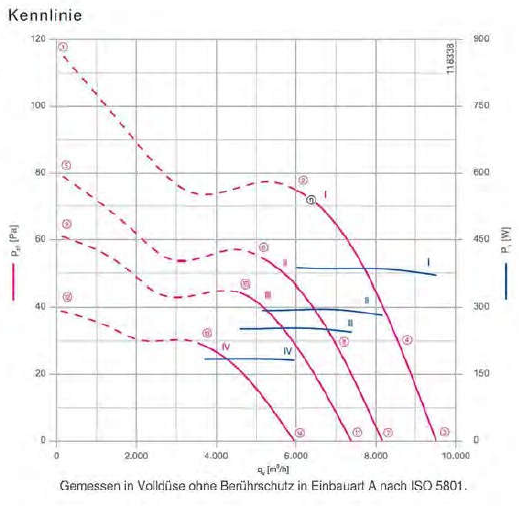

Volume flow at 0 Pa [m³/h] | 9600 |
Max. pressure psf [Pa] | 77 |
Volume flow at max. pressure [m³/h] | 5800 |
