ZIEHL-ABEGG Axial fan / FF063-6DT.4I.A5R2 / ZV-159958

Name: ZIEHL-ABEGG Axial fan / FF063-6DT.4I.A5R2 / ZV-159958
SKU: ZV-159958
Availability: InStock

ß – Agriculture

540,26 €

Includes 19% MwSt.

Delivery Time: approx. 5 working days

Additional costs (e.g. for customs or taxes) may occur when shipping to non-EU countries.

3 in stock

SKU: ZV-159958

Additional information

Weight	12 kg
Matchcode	FF063-6DT.4I.A5R2
Product group	Axial fan
Wing diameter [cm]	63
Rated frequency fN [Hz]	50 (60 Hz data available)
Input power P1 [kW]	0, 540
Rated current IN [A]	2, 2/1, 25
Rated speed nN [min-1]	930
Min. permissible pumped liquid temperature [°C]	-40
Max. permissible pumped liquid temperature [°C]	40
Sound pressure level LpA or LwA [dB(A)]	46
Protection class	IP54
Motor protection	Thermostat switch
Sash version	Aluminum, 1-layer lacquering, jet black
Rotor	Aluminum, 1-layer lacquering, jet black
Conformity	ErP 2015, CE

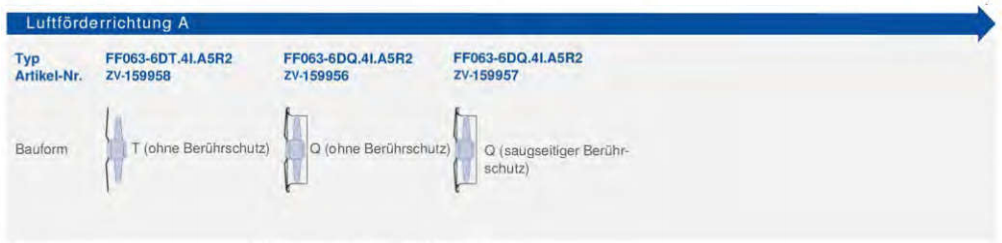

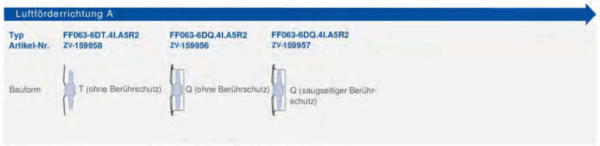

Design	T (without contact protection)

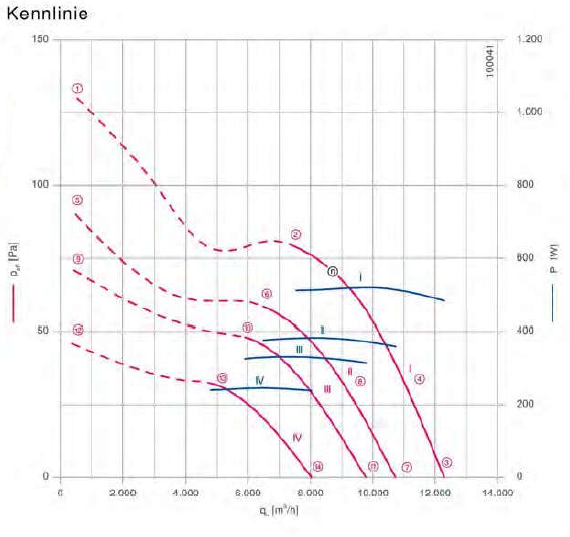

Volume flow at 0 Pa [m³/h]	12300
Max. pressure psf [Pa]	80
Volume flow at max. pressure [m³/h]	7400
